Fleroperationsmaskin

BIESSE BIESSE Rover A G 2243 FT

Technical characteristics
En cours de vérification

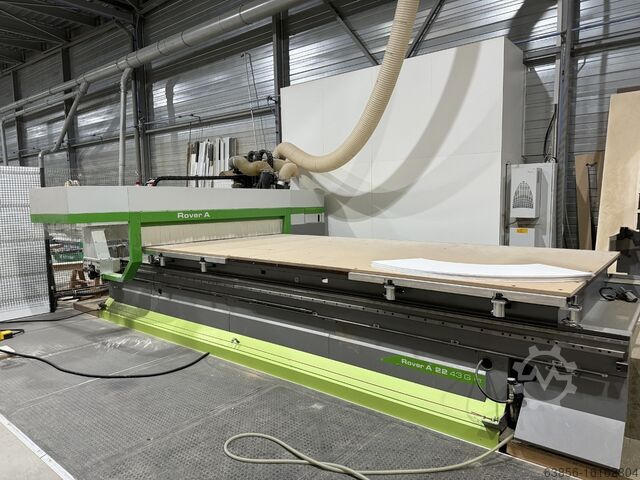

Nesting machining center with full table
X axis travel: 4300 mm
Y axis travel: 2205 mm
Z axis travel: 326 mm
Electrospindle
3-axis spindle, 12 kW
HSK F63 chuck

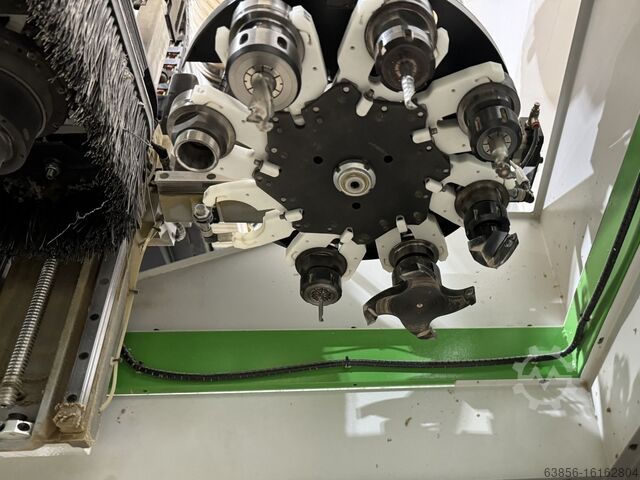

Revolver-type tool magazine, 8 tool holders
BH17L drilling unit
Vertical and horizontal drilling unit + grooving unit
10 vertical drill bits, 32 mm pitch (7 X-oriented and 3 Y-oriented)
6 horizontal drill bits, 32 mm pitch (2 X-oriented and 1 Y-oriented)
1 grooving blade, diameter 120 mm, for grooving in X (useful cut 25 mm)
Independent Z drilling unit to optimize machining times
9-area vacuum table with MDF martyr panel
Rear, front and side (left) reference stops
Golhccjtqi Uyjqmobp
2 vacuum pumps 300 m3/h
Controls :
On Windows PC
BiesseWorks Advanced software machine version
Programming and optimization of drilling, cutting, milling, toolpaths and tool changes
Customized parametric macros
Network and/or USB file imports
3D part and toolpath simulator
Parametric programming of the workpiece
Martyr table surface program
Collision management
Tooling set and parametric cones supplied
2 BiesseWorks office version software keys supplied
Power and Motors
Voltage: 400 V
Pluging: Three-phased
Power: 33,4 Kw
Overall dimensions
Lenght: 8400 mm
Width: 5800 mm
Height: 2445 mm
Weight: 3840 Kg
