High-bay warehouseNedcon
Palettenregal
High-bay warehouse
Nedcon
Palettenregal
Fast pris plus moms
21 250 €
Tillverkningsår
2024
Skick
Begagnad
Plats
Hofheim am Taunus

Grundläggande data
- Maskinbeteckning:
- High-bay warehouse
- Tillverkare:
- Nedcon
- Modell:
- Palettenregal
- Tillverkningsår:
- 2024
- Skick:
- nästan som ny (begagnad)
Pris och plats
Fast pris plus moms
21 250 €
- Plats:
- Wiesbadener Str 6, 65719 Hofheim, Deutschland

Ringa
Erbjudandets detaljer
- Annons-ID:
- A162-38839
- Uppdatering:
- senast den 03.06.2024
Beskrivning
Pallet rack 5m high, Nedcon, 1,000kg / pallet, approx. 720 storage locations - second-hand - :
Price: 21.250.- € (net) incl. delivery within Germany (without islands)!
Example configuration - other configurations on request!
Price per frame: € 146.50 (net)
Price per trusses: 29.-€
Accessories:
Price per corner collision protection 90 degrees: € 55 (net)
Price per support collision protection: 14.-€ (net)
Manufacturer: Nedcon
Type: Pallet rack
Year of manufacture: current new goods
Shelf load: 3.000kg
Max. Pallet weight: 1.000kg
Max. usable bay load: 9,000kg (other bay loads on request)
Frame
Quantity: 66 pieces
Frame height: 5m (other frame heights up to 7.50m available at short notice)
Frame depth: 1.10m
Frame bracing: bolted (frames are not delivered pre-assembled)
Cross beams
Quantity: 360 pieces
Clear width: 2.70m (also available in 1.80m and 3.60m)
Incl. ground anchor
Condition: New
Available: Delivery time approx. 2 - 3 weeks
Location:
INGABE:
Project name: Example 5m high
User: Alexander von Westernhagen
Company: Alexander v. Westernhagen
Transport Country: Germany
Postal code: 60000
Project area: A
Country: DE
Width of goods: 800 mm
Height of goods: 1250 mm
Weight of goods: 1000 kg
Pallets per compartment: 3 pallets
Pallets per compartment end: 0 pallets
Number of levels: 3 levels
Total number of bays: 10 bays
Number of bays End: 0 bays
Number of single rows: 2 row(s)
Number of double rows: 2 row(s)
RESULT:
Shelf load: 3000 kg
Bay load: 9000 kg
Net bay width: 2700 mm
Net bay width end: 2700 mm
Distance level to level: 1500 mm
Frame height: 5000 mm
Frame height end: 5000 mm
Frame width: 1100 mm
Beam height: 110 mm
Number of pallet spaces: 720 units
Shelf length: 28100 mm

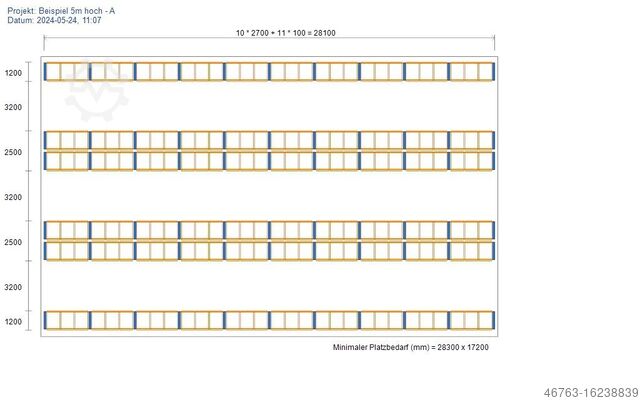

Minimum space requirement: 28300 x 17200 mm
MATERIAL LIST:
Cedpfx Anettwi Degshd
Id PartNo Description Amount Corr. UnitWeight Material
1 50320 Set Frame 1006820 5000x1100 450_2,R5019 54 0 61,37 FRAME
2 50320 Set frame 1006820 5000x1100 450_2,R5019 12 0 61,37 FRAME
3 50340 Set of supports CC1104015A-275 PR2-4HK 2700 360 0 14.54 BEAM
4 50346 Set of spacers NR screwed L200, se 44 0 0.36 ACC
5 57859 Anchor Fischer FAZ II plus M12/ 10 mech 264 0 0.1 ACC
