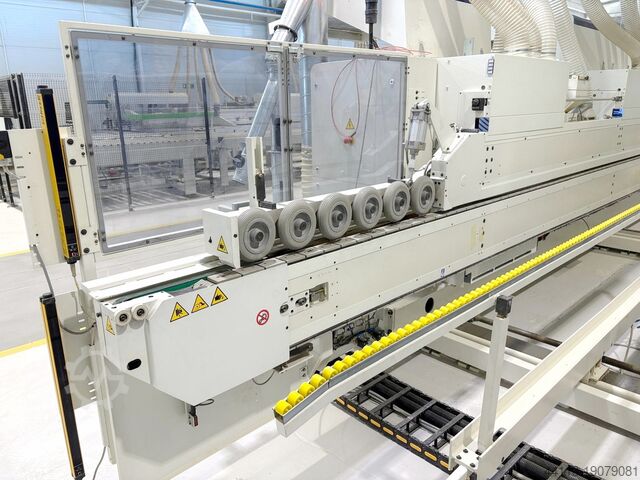

Double-side SIZING&EDGE BANDING machine

STEFANI (SCM Group) Evolution C 220

Double side - Independent Machine (or 1st and/or 2nd in a line)
Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3
Panels thickness (min/max) mm 14 / 60
Working width (min/max) mm mm 260 (ca.) / 3200
Bledpfx Aswhi Sljnuep
Numerical Control /Software MAESTRO PRO EDGE
Adjustable feeding speed (m/min) 10- 40
Safety sound-proof enclosures/cabins + Distance (center-axes) of Disappearing Dogs (mm) 400
SIZING PART (for each side):
Anti-chipping Milling Unit AS (1 x Kw 4)
Hogging Units DTR (2 x Kw 8)
Spraying unit (Anti-sticking liquid) AAR
EDGE-BANDING PART (for each side):
Lamps to heat the workpieces side
Glueing Unit (Hot Melt Glue + Quick Melt system)
Band Pressure zone (N.C. adjustment)
Edge coils support (No 2 reels) motorized
Snipping (end-cutting) unit YU/SP-750 (30 m/min)
Rough Trimming unit RSP
Fine Trimming unit (Multi-profile, by N.C.) RI/S 2P
Corner Rounding unit ( Contour Trimming) C1+C2 (4 x Kw 0,35) ED-SYSTEM e Fast-Release
Profile Scraping unit RAS/S
Glue scraping unit RCA/2C
Spraying Unit (for polishing liquid)
Buffing unit SPE
Milling grooving unit U (1 SX + 1 DX) 2 x Kw 5,5
