Band saw, band resaw

CENTAURO Supercut 80

Thin layer from 2 mm thickness
Maximum cutting accuracy up to ± 0.15 mm
Minimal kerf, cutting thickness from 1.3 mm
Ideal for the cutting of dried and wet wood or alternative materials
Surface of the thin layer ready for gluing without need of further processing steps

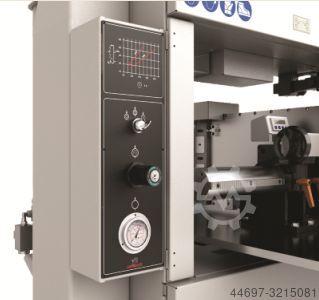

Friendly user electronic control
Two programmable speeds of the carpet (0-30 m/min) for the best cutting quality and to safeguard the blade life
Optical sensor to start cutting cycle and speed change
Ground table
“Flexam” belt feeding for the best performance
6 rubber idler rollers adjustable in height, for opening/closing to ensure the best pneumatic pressure on the workpiece during feeding
and cutting
Oleo-pneumatic tensioning of the blade for better cutting performance
Top and bottom ‘’Chaco’’ blade-guides which guarantee the best stability blade during cutting
Internal/external lubrication of the blade to remove residues of resins and chips
4 dust extraction to optimize the suction of dust and chips
Cutting height of 400 mm (500 mm optional)
Cutting width up to 400 mm
High quality powerful motor kW 15 (HP 20)
Ethernet connection for on line service
Carbide or stellite blades for best cutting performance

DM of saw wheels mm 800
Max. cutting height mm 400
fixed working table mm 1290 x 800
Max. saw blade width mm 54 x 0,9
Max. & min. saw blade length mm 5530 / 5380
motor Kw 15 (HP 20)
suction connection nr 2x Ø 120 & 1 x Ø 100
compressed air requirement bar 6/ 27 ltd
machine weight Kg 880
feed speed m/min 0 - 30

height of feeder belt mm 300
length of feeder mm 750
feeder roller DM mm 160
Bljdsdcd Dlspfx Ailop
Max. feeder opening mm 200
Max. fence opening mm 200
feeder speed var. mt/ min 0-30
