Universal machining center

TOS KUŘIM FUE 125 W/4

We offer a used FUE 125 W/4 milling and boring machine, manufactured in 2011, equipped with the HEIDENHAIN iTNC 530 HSCI control system and HR410 handwheel, HEIDENHAIN digital drives, standard design, metric version, AC 3PE˜50Hz, 400V connection.

Travel ranges:
• X-axis (longitudinal): 4,000 mm
• Y-axis (cross): 1,250 mm
• W-axis (spindle extension): 800 mm, spindle diameter 130 mm
• Z-axis (vertical): 2,500 mm
• Rapid traverse X1: 20,000 mm/min
• Rapid traverse Y, Z1: 10,000 mm/min

Machine specifications:
• Metric version: Yes
• Spindle head design: Extendable working spindle (W axis) + 3 automatically exchangeable accessory heads
• Tool clamping: ISO 50
• Power: 28 kW
• Spindle taper: ISO 50, DIN 69 871 clamping

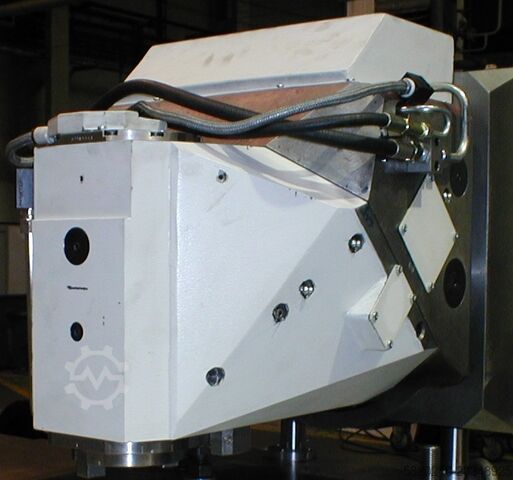

• Automatic accessory head IPS with automatic spindle positioning for H/V orientation, 2,500 rpm / 1,200 Nm
• Automatic accessory head IZN1 for turning, CAPTO 6 clamping
• Automatic accessory head IZN2 for turning, CAPTO 6 clamping

Control and accessories:
• HEIDENHAIN iTNC 530 HSCI
• HEIDENHAIN HR 410 wired handwheel
Cedpfx Asxp U U Sel Ishd
• Cooling unit for spindle head thermal stabilization
• High-pressure through-spindle cooling: 20 bar / 30 l/min / 180 l
• External low-pressure cooling: 5 bar / 60 l/min / 1,200 l

Clamping area in front of the machine: Optional

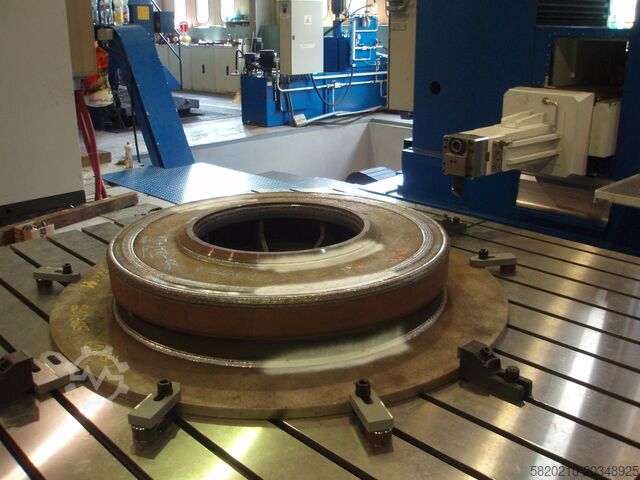

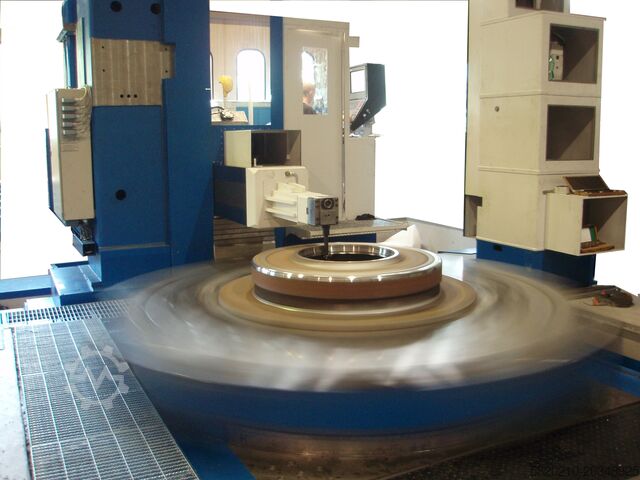

Currently equipped with a rotary traversing table (KES) with carousel function (option: configurable as plate or table)
• Dimensions: 3,000 x 3,000 mm, V (Y) axis = 1,500 mm
• Load capacity: 60,000 kg (hydrostatic)
• Speed range: 1 - 80 rpm
• T-slot dimension (base clamping plate): 28 H11, central 28 H8
• T-slot pitch and count: 200 mm, 15 slots
• Centering hole: 100 H7
• Rotational axis drives: MASTER-SLAVE, 2x SIEMENS motor
• Additional carousel plate, diameter 3,000 mm, 8-way star-shaped slot configuration

For further options and accessories or to arrange an inspection, please contact us.
