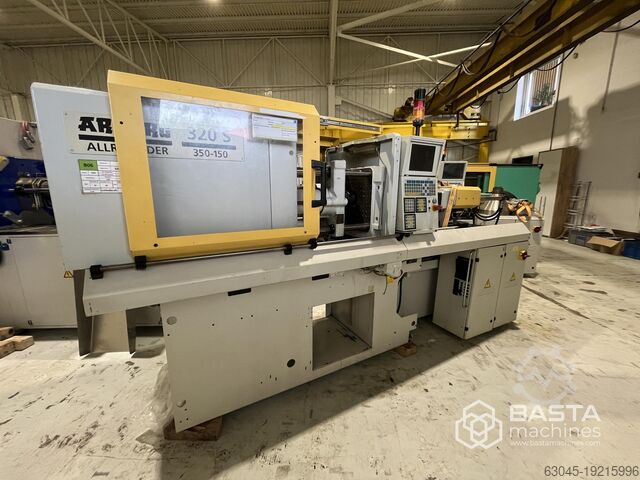

ARBURG 320 S 350-150 (2002)

General information
Chsdpfx Aswmqx Rsngjd

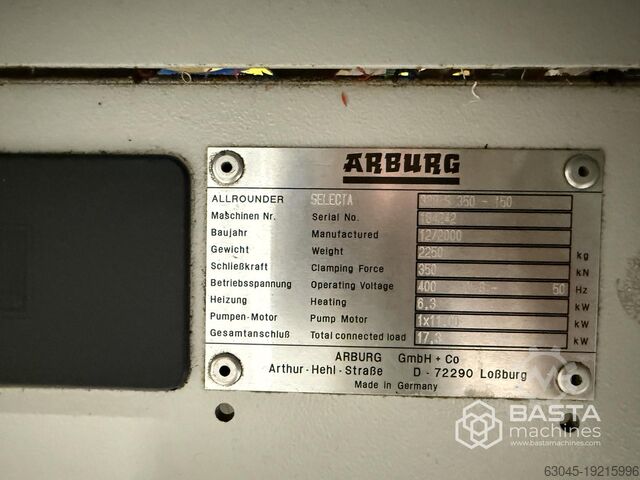

1. Manufacturer: ARBURG
2. Model: ALLROUNDER 320 S 350-150
3. Year of manufacture: 2002
4. Machine type: Hydraulic injection moulding machine
5. Control system: ARBURG SELOGICA (version to be confirmed)

Clamping unit

1. Clamping force: 350 kN (35 ton)
2. Platen dimensions: 455 × 455 mm
3. Distance between tie bars: 320 × 320 mm
4. Maximum daylight: 575 mm
5. Minimum mould height: approx. 175 mm (to be confirmed)

Injection unit

1. Screw diameter: 30 mm
2. Screw type: Wear-resistant, suitable for materials with up to 30% glass fibre (as specified)
3. Injection pressure: approx. 2,210 bar
4. Maximum injection volume: approx. 78 cm³
5. Maximum shot weight (PS): approx. 71 g
6. Maximum screw stroke: approx. 110 mm
7. Effective screw length: 20 L/D
8. Maximum injection flow: approx. 82 cm³/s

Hydraulic system

1. Hydraulic pump motor power: approx. 11 kW
2. Hydraulic oil capacity: approx. 120 l

Dimensions and weight

1. Machine weight: approx. 2,250 kg
2. Country of manufacture: Germany
